Large Heavy Duty DIY Retractable Golf Impact Screen Drive

The kit includes a heavy-duty motor drive kit and a selected length 2 1/2"(63mm) tube CL800-D63. It is easy to install and a great choice for large motorized roller shades and blinds, Roman shades, shutters, projection screens, golf impact screens, Austrian electric curtains, garage door screens, and other tubular types of automation heavy/middle duty projects. With a Wi-Fi RF SmartCtrl-MA (sold separately) controller, you can open/close your shade or screen with your smartphone or voice control with Alexa or Google Home.

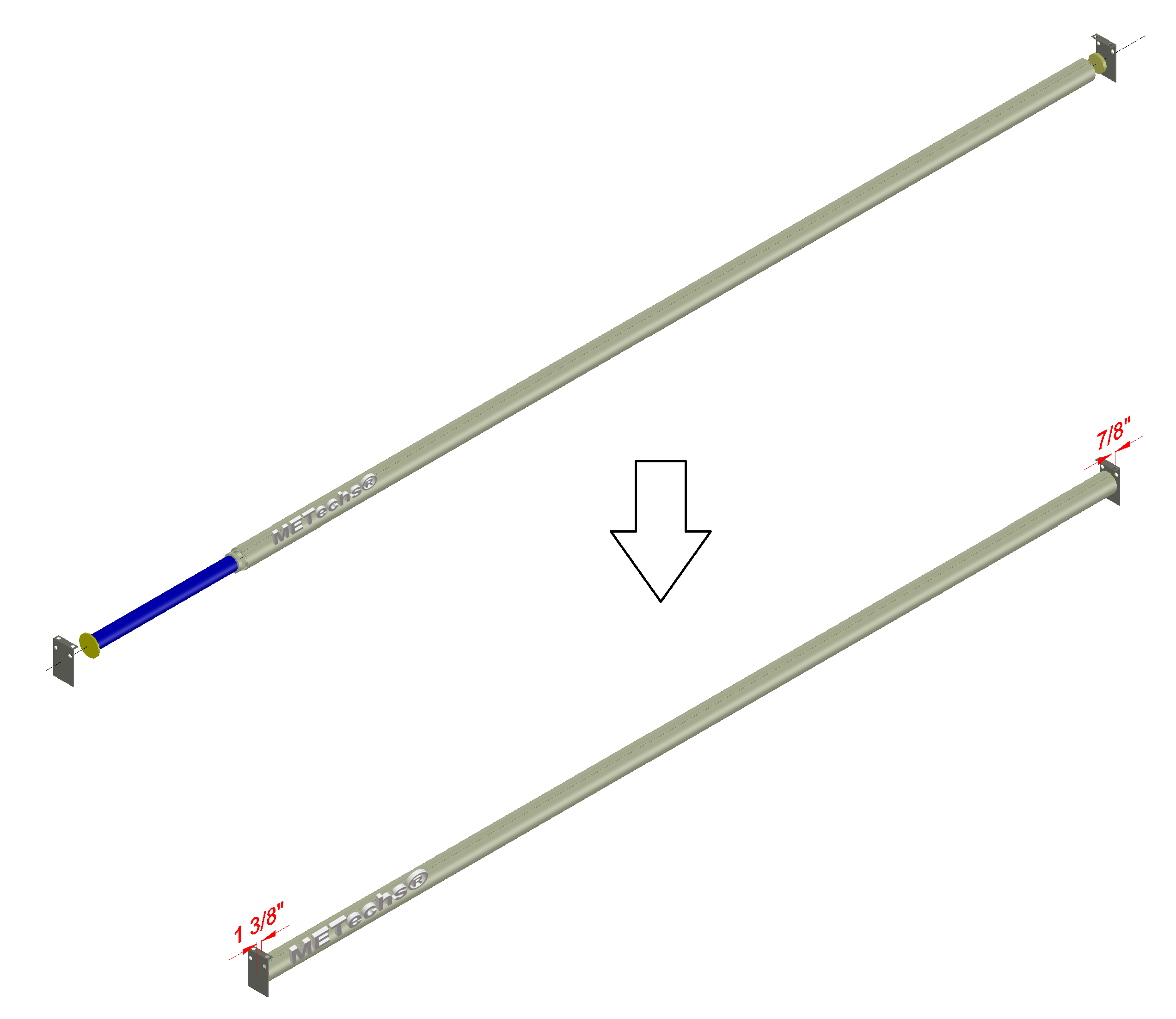

💡Order tips: This kit is designed for a worry-free purchase and flexible installation. The motor can be installed either on the right or left. The tube can be easily cut to fit the measurements of your project. Just order the next longer size than your measured size. Mounting hardware and remote control are included in the package. The impact screen and bottom weight bar do not come with the package. We do customize any sized impact screen and bottom weight bar for the drive kit. We will cut it to your size and it will be ready for you to assemble. We also offer retractable side protection screens and drive kits, with two side U shape layout or with one side L shape layout. How to order a custom retractable golf impact screen kit .

Warning: Using an incompatible motor with an impact screen can cause damage or failure. Only use motors rated for impact applications

Impact screen and weight bar are not included.

Special engineering structure (patent pending) for heavy load and long span.

Features

• Compact design with a motor, transmission box, RF receiver, and controller all in one tube
• Special designed motor gear and brackets for holding up 2000lbs impact force and perfect for golf impact screen and hurricane shutter
• Programmable electronic upper/lower positions
• Stops at any position by pressing "STOP" button
• Can be mounted on ceiling, wall, or any other angled surface
• Motor runs quietly and remains silent on standby
• Group control to run multiple motors up or down simultaneously or individually
• Double hall feedback sensor for precise position
• Safe and reliable with overheat protection

Specifications

• Operation voltage: 120V AC, 60Hz
• Operation power: 200W
• Protection Class: IP44, Class H
• Rated RPM: 18
• Rated Torque: 30N.M
• Frequency: 868MHz
• Noise Level <45dB
• Precise limit switch, repeated resolution <3 °
• Maximum load <212 lbs (96kg)

Package Content

• One tubular motor CL645E-3018
• One RF remote
• Mount brackets
• Selected size 2.5" (63mm) rod CL800-D63
• Instruction booklet
